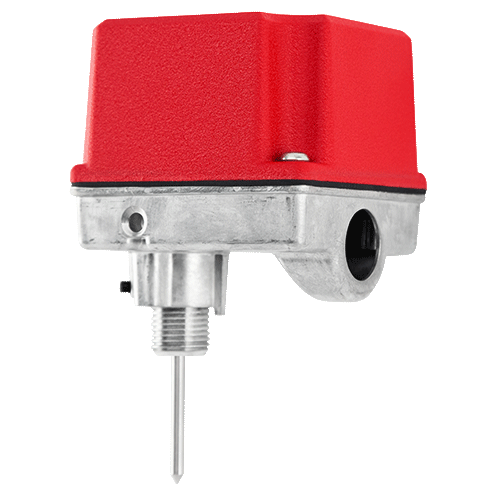

Safe Signal - Supervisory Tamper Switch, For PIV or Butterfly Valves - PIBV2

The PIBV2 monitors the open position of post indicator and butterfly control valves.

Features:
• NEMA 3R rated enclosure
• Bi-directional actuator
• Easy single side conduit entry
• Adjustable length actuator with breakaway feature
• Built to accommodate up to 12 AWG wire
• Two sets of SPDT contacts enclosed in a durable terminal block
• 100 percent synchronization activates alarm panel and local bell simultaneously
• Operating temperature range –40°F to 120°F (–40°C to 49°C)
• Tamper resistant cover screws

Specifications:
Conduit Entrances:  One single side open for 1/2" conduit
Contact Ratings:  Two sets of SPDT (Form C); 10.0A @ 125/250VAC; 2.5A @ 6/12/24VDC
Enclosure Rating:  UL NEMA 3
Maximum Stem Extension:  3-5/32" (8.0cm)
Operating Temperature Range:  32°F to 120°F (0° to 49°C)
Overall Dimensions:  4-1/4"H x 3-1/2"W x 3-1/4"D (10.8cm x 8.9cm x 8.2cm)
Pressure Connection:  1/2" NPT nipple
Shipping Weight:  2 lbs. (0.9 kg)
Valve Types:  Post indicator valves; butterfly valves with rising or falling flags

Robust Construction:  The PIBV2’s rugged housing is intended for indoor and outdoor use. When installed with the actuator in the vertical position, the PIBV2 is NEMA 3R rated per UL.

Application Flexibility: The PIBV2 features a flexible design, which accommodates post indicator, butterfly, and many other types of wall post, recessed wall post and pressure reducing valves. The PIBV2’s unique bi-directional actuator allows the unit to be installed in either rising or falling flag installations.

Simplified Installation:  Installation is made easier with the PIBV2’s single side conduit entrance. By providing a direct conduit pathway to the electrical source, right angle fittings are not required. Installation is further simplified by the PIBV2’s adjustable length actuator with a convenient breakaway feature for installation on shorter valves. This eliminates the need for cutting the shaft.

Reliable Performance: The PIBV2 has 100 percent synchronization which activates the alarm panel and local bell
simultaneously. In addition, the switch is designed to operate in temperatures ranging from –40°F to 120°F (–40°C to 49°C). The PIBV2 is equipped with tamper resistant cover screws to prevent unauthorized entry. Inside, two sets of SPDT (Form C) synchronized switches are enclosed in a durable terminal block to assure reliable performance
